Foundation Underpinning in Edendale

Stabilize now. Protect what sits above.

Edendale has a particular mix: pre-war Craftsman and Spanish bungalows, hillside lots that tip toward Glendale Boulevard, stair-street access, and soils that swell, shrink, and creep. That combination can nudge a home out of level over time. Floors dip. Plaster cracks. Doors go stubborn. When those patterns show up, underpinning is often the right fix—strengthening the support below the walls so the structure stops moving.

Alpha Structural engineers and builds those fixes under one roof. We’ve worked this pocket for decades—Elysian Heights to Silver Lake’s edge—designing foundation underpinning that fits the slope, the soil, and the age of the house.

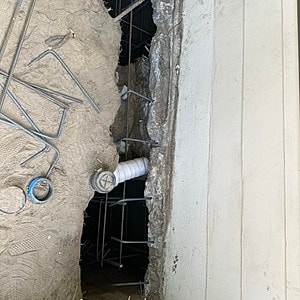

Foundation Underpinning Gallery »

What underpinning is—and why Edendale needs it

Underpinning adds new bearing capacity beneath an existing foundation. In practical terms, we extend the foundation down to a stronger material or spread loads more intelligently so that settlement stops. In Edendale, the drivers are familiar with expansive clay that cycles with wet and dry seasons, older shallow footings poured without steel, hillside creep after storms, and nearby construction that disturbs support soils.

Done well, underpinning doesn’t just mask symptoms. It arrests movement at the source so cracks close up, floors settle back toward the plane, and the building has a stable path forward.

Signs settlement is active

Most homeowners don’t call after the first sticky window. They call when the house starts telling a consistent story. Look for stepped cracks at corners, gaps opening along baseboards, floors that roll toward exterior walls, stucco fractures that reappear after patching, or a porch that’s drifting off its posts. On slope-side homes above Allesandro or Baxter, watch the downslope walls and deck lines first—they tend to speak up earliest.

How we underpin in this neighborhood

Methods are chosen after we open up the footing and verify soil conditions, footing depth, and reinforcement. Common approaches in Edendale include:

Caisson-and-grade-beam systems.

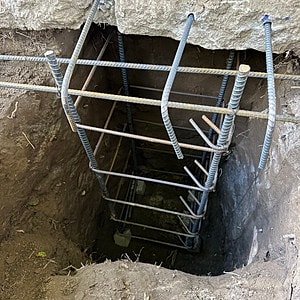

We drill reinforced concrete shafts to competent bearing and tie them together with a steel-reinforced beam. This is a workhorse solution for hillside lots because it bypasses weak near-surface soils and ties the structure into something that doesn’t budge.

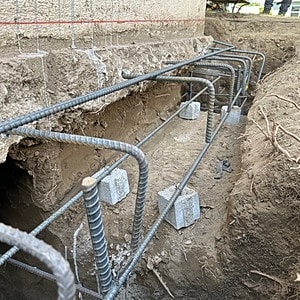

Deepened and widened footings.

Where soils are suitable and access is tight, we extend existing footings downward and outward, add steel, and reconnect the wall with new dowels. It’s efficient along interior lines and short runs.

Needle beams and staged lifts.

For localized drops, we insert temporary steel through the wall, jack in controlled increments, then lock the elevation with new concrete support below.

Sister foundations at cripple walls.

On raised houses with tired perimeter walls, we build a new reinforced stem alongside the original and tie them together, then bring the floor system back into line.

All design, calculations, and details are handled in-house. No hand-offs. No guesswork between an outside engineer and a separate contractor.

The process, start to finish

It begins with a site evaluation. We map distress, measure elevation changes, and review drainage and grading. If the footing and soil need proof, we excavate test pits. From there, our engineering team sets the plan—locations, depths, reinforcing schedules, and any staged lifting that’s safe for the structure.

Permitting comes next. We pull the permits with the City of Los Angeles, coordinate inspections, and schedule utilities if locates are needed. Construction follows a tight sequence: excavation and shoring, reinforcement and dowels, concrete placement, cure time, any incremental lift, backfill, and finish. Inside living areas, protection and daily cleanup are standard. Many projects remain habitable; if a temporary move-out is smart for safety or access, we’ll say so plainly.

Timeframes and cost drivers

Smaller segments under interior lines can wrap in a week or two. Full perimeter work with caissons on a steep lot near Glendale Boulevard takes longer. Depth to competent bearing, access for equipment, the number of underpin points, and the need for staged lifts drive both schedule and cost. You’ll have a written scope, drawings, and a line-item estimate before any work begins, and we offer financing so you can move on the problem while it’s still manageable.

Drainage matters on these slopes

Underpinning holds the house steady. Good drainage keeps it that way. We correct grade where feasible, add area drains and tightlines, and manage downspouts so water leaves the footprint instead of saturating the downslope side. On streets that run steep—think Baxter, Lucretia, or the stair blocks—the difference shows up after the first big rain.

Access, heritage, and the way we build

Edendale homes often come with narrow side yards, mature landscaping, and original finishes that owners want to preserve. We plan access routes that protect those elements, phase work to limit disruption, and match repairs at visible areas so the house reads as itself when we’re done. Where historic fabric matters, our crews coordinate with your designer or preservation consultant to keep the character intact while the structure gets stronger.

Why Alpha Structural for underpinning in Edendale

We’re licensed to engineer and to build, which means the team that designs your fix is the team that installs it. That integration trims delays, avoids scope creep, and gives you one accountable partner from first measurement to final inspection. We’ve stabilized thousands of Los Angeles houses since 1993, including a long list in the hills between Echo Park Lake and the Silver Lake Reservoir. The work is quiet by design: solve the problem below, respect the house above, and leave the place cleaner and steadier than we found it.

FAQs

Will underpinning level my floors back to perfect?

We target structural stability first, then recover as much elevation as the building safely allows. Older framing and finishes set the practical limit; we’ll show you the anticipated lift during planning.

Do I need to move out?

Often no. If the work is confined to exterior lines or crawl spaces, you can usually stay. For heavy interior runs or tight sites, a short relocation can speed things up and keep everyone safe.

How deep are the caissons here?

Depth varies block to block. In parts of Edendale, we hit competent material at 10–15 feet; on steeper lots, it can run deeper. We confirm during design digs and adjust the plan as needed.

What about permits and inspections?

We handle the plan check, permits, and all city inspections. You’ll see the schedule at the start and the sign-offs at the end.

Will you also fix my drainage?

Yes. We often pair underpinning with drainage improvements so the repair lasts. That can include surface drains, downspout tie-ins, and minor grading corrections.

Schedule an evaluation

If your Edendale home is settling—or you’re seeing the early tells—get it looked at before the next rainy season or the shake widens the gaps. Call (323) 300-2195 to book an on-site evaluation, or use the contact form to request a visit. We’ll measure, explain, and give you a clear plan to stop the movement and stabilize the house for the long haul.
