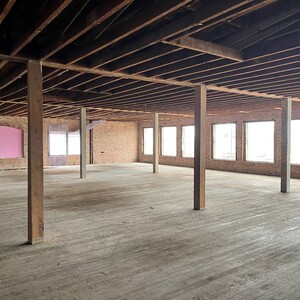

Unreinforced Masonry (URM) building consists of unreinforced bearing walls, usually at the perimeter and usually brick. Solid clay-brick unit masonry is the most common type of masonry unit. The floors and roof are typically of wood joists and wood sheathing supported on the walls and on interior post and beam construction. This building type is common throughout the United States, and was built for wide variety of uses, from one-story commercial or industrial occupancies to multistory warehouses to mid-rise hotels.

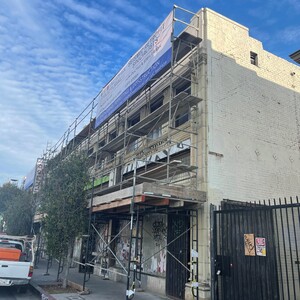

Unreinforced Masonry Los Angeles Unreinforced Masonry Los Angeles Unreinforced Masonry Los Angeles

Common Seismic Deficiencies in URM Building.

URM buildings are considered to be one of the most hazardous building types. Significant property damage and loss of life have occurred in URM buildings during earthquakes around the world and United States. The primary deficiencies in URM buildings are due to

  • Unbraced parapets and chimneys which can fail on adjacent pedestrian through-fares.

  • Inadequate or missing shear and tension connections between the unreinforced masonry bearing wall and the wood floor or roof. This can lead to wall failure and loss of vertical support for diaphragms.
  • Inadequate wood diaphragms strength and stiffness.

  • Inadequate out-of-plane bending resistance of an unreinforced masonry wall.

  • Inadequate unreinforced masonry in-plane wall strength due to window openings.

  • Masonry walls having fairly open street façade at the ground level, leading to a weak and soft first story and torsional irregularities.

Applicable Rehabilitation Technique

The strength of URM building is dependent on the in-plane shear capacity of walls, out-of-plane bending capacity of the walls, and strength of wall to diaphragm connection. The seismic rehabilitation of URM building can be addressed in the following ways,

  • URM wall capacity can be enhanced by adding concrete or shortcrete overlays. Steel moment frames can be added for wide open storefronts.

  • Wood diaphragms deficiency can be addressed by adding new interior shear elements to cut the diaphragm span or by enhancing the diaphragm itself with wood structural panel overlays.

  • Walls susceptible to out-of-plane bending can strengthen by strongbacks placed against them either on the outside or more commonly on the interior face.

  • Connection between walls and diaphragms is the single most significant deficiency. This can be strengthened by adding tension ties between walls and diaphragms for out-of-plane forces and shear ties for in-plane force.

  • URM parapets can be braced or removed to minimize the falling hazard. Bracing is usually done with steel angle brace.
